Sealed liquid cooling loop Hybrid passive / active operation Passive operation in moderate climates Active cooling automatically engaged under high load or temperature

Cold Start Capability

Guaranteed cold start from -40°C

Optimised airflow and thermal design Potential up to 30% reduction in cooling related power consumption compared to traditional outdoor cabinet solutions

Physical Characteristics

Weight: <18 kg (<40 lb) Volume: <16 liters Compact, low profile enclosure Designed for pole, wall, and structure mounting

MTBF target: >220,000 hours Zero maintenance sealed cooling loop Long life seals and gaskets validated for outdoor exposure

Typical Deployment Scenarios

Outdoor 5G and Open RAN edge nodes Remote telecom aggregation points Industrial and utility substations Transportation and smart infrastructure sites Harsh climate or unmanned installations

Support 16 SFPs (Small Form-factor Pluggable) SFP Onsite Serviceability Supports all cable diameters

ETSI EN 300 019 (mechanical and transport) IEC 60068 series (shock, vibration, environmental) CISPR 32 / FCC Part 15 Class B (EMI) IEC 610004x series (EMC immunity) IEC 623681 safety

Solution - EDGE Technical

Q: Physical Characteristics

Weight: <18 kg (<40 lb) Volume: <16 liters Compact, low profile enclosure Designed for pole, wall, and structure mounting

Q: Reliability Targets

MTBF target: >220,000 hours Zero maintenance sealed cooling loop Long life seals and gaskets validated for outdoor exposure

The Edge, anywhere. Delivers enterprise-grade performance in places traditional data centers can’t reach, from factories and farms to vehicles, retail floors, construction sites, labs, and remote research operations.

Every line, every component, and every airflow path has been meticulously orchestrated to deliver peak performance in a footprint smaller than you can imagine.

The below are our standardised specifications, but we engineer around you. We will work to create your system, meeting the regularity requirements you need.

Standardised Metrics & Parameters

Operating Environment Specifications

Operating temperature:

-40°C to +55°C ambient (including solar load)

Storage temperature:

From -40 to +55°C

Humidity

Up to 95%, noncondensing

Altitude

Up to 4,000 m (629 hPa) (13,000ft)

Ingress Protection

IP rating:

IP66 (JIS C0920 / IEC 60259)

Enclosure

Fully sealed

Tested

With all cables connected. No dust ingress, no water penetration

Corrosion & Environmental Resistance

Salt fog spray:

30 days

Mixed gas corrosion test:

IEC 60068260, Method 4 (21 days)

UV resistance

per GR487

Resistance

Corrosion resistant fasteners and brackets

Mechanical Robustness

Random vibration

ETSI EN 300 01924 Class 4M5

Shock:

IEC 60068227

Earthquake resistance

Multiaxis seismic testing (R4–R12 profiles)

Wind resistance

up to 90 m/s

Wind driven

rain tested per MILSTD810G Method 506.4

Thermal & Power Characteristics

Sealed liquid cooling loop
Hybrid passive / active operation
Passive operation in moderate climates
Active cooling automatically engaged under high load or temperature

Guaranteed cold start from -40°C

Optimised airflow and thermal design
Potential up to 30% reduction in cooling related power consumption compared to traditional outdoor cabinet solutions

Weight: <18 kg (<40 lb)
Volume: <16 liters
Compact, low profile enclosure
Designed for pole, wall, and structure mounting

MTBF target: >220,000 hours
Zero maintenance sealed cooling loop
Long life seals and gaskets validated for outdoor exposure

Outdoor 5G and Open RAN edge nodes
Remote telecom aggregation points
Industrial and utility substations
Transportation and smart infrastructure sites
Harsh climate or unmanned installations

Support 16 SFPs (Small Form-factor Pluggable)
SFP Onsite Serviceability
Supports all cable diameters

Designed to comply with the following standards:

ETSI EN 300 019 (mechanical and transport)
IEC 60068 series (shock, vibration, environmental)
CISPR 32 / FCC Part 15 Class B (EMI)
IEC 610004x series (EMC immunity)
IEC 623681 safety

Reliable under extreme environmental, mechanical & electrical conditions

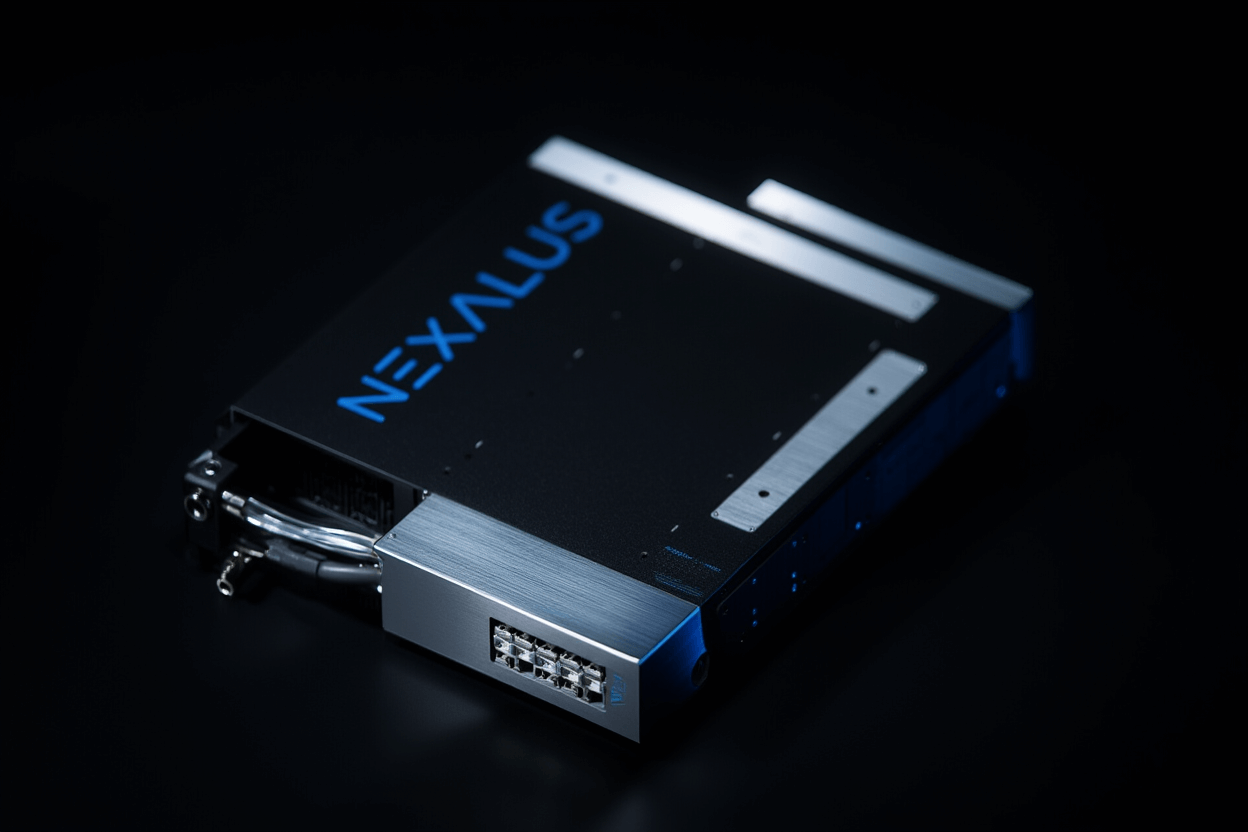

Edge Server is a ruggedized, sealed outdoor edge server system designed to meet Telcordia GR3108 Class 4 requirements for outside plant (OSP) telecom equipment.

The platform combines a fully sealed IP66 enclosure, hybrid liquid cooling architecture, and telecom grade mechanical design to enable cabinet less deployment in harsh outdoor environments.
